Product Details:
|
| OE No.: | 275491 | Category: | Air Compressor Governor |
|---|---|---|---|
| Material: | Steel | Weight: | 0.634 Ounces |
| Size: | 5.51 X 2.8 X 2.64 Inches | Pressure: | 100-120 PSI |
| Cross Reference No.: | 27549, KN-18530 | Warranty: | 6 Months |
| High Light: | 6CT Air Compressor Governor,275491,181461 |
||

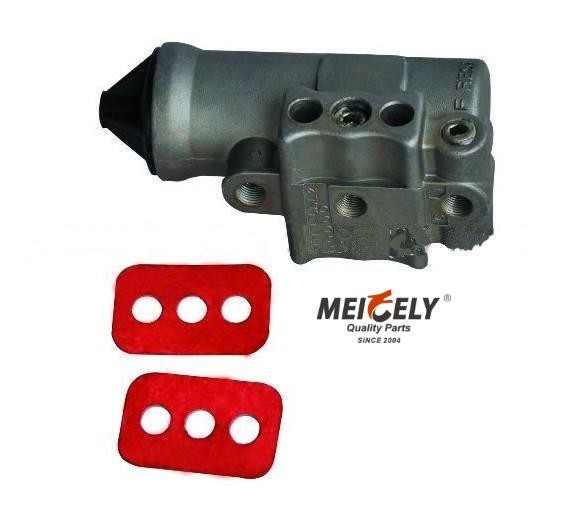

6CT Air Compressor Governor 275491 181461
Specification
| Specification As Follows | |
| OE No. | 275491 |
| Category | Air Compressor Governor |
| Material | Steel |
| Weight | 0.634 ounces |
| Size | 5.51 x 2.8 x 2.64 inches |
| Pressure | 100-120 PSI |
| Cross Reference No. | 27549, KN-18530 |
| Warranty | 6 Months |
Description
Application and general information 1: Standard version. The pressure setting range is adjustable. Governor - Indicates the unloading mechanism in the compressor when to accumulate air to the reservoir and when to stop the accumulation of air. Typically 100-120 psi. This item controls the pressure in the air system. The compressor runs continuously while the engine is running, so the D-2 regulator activates the compressor unloader mechanism when the system pressure reaches the governor cut-out pressure. Deactivates the unloaders once the system pressure has dropped to the governor cut-off pressure. While unloaded, the compressor simply pumps air from one cylinder to another instead of sending it to the tank.
Other OE No.
| Other OE No. As Follows | |
| Truck Model | Other OE No. |
| 275491 Air Compressor | 181461 |
| 275491 Air Compressor | P/N18530 |
